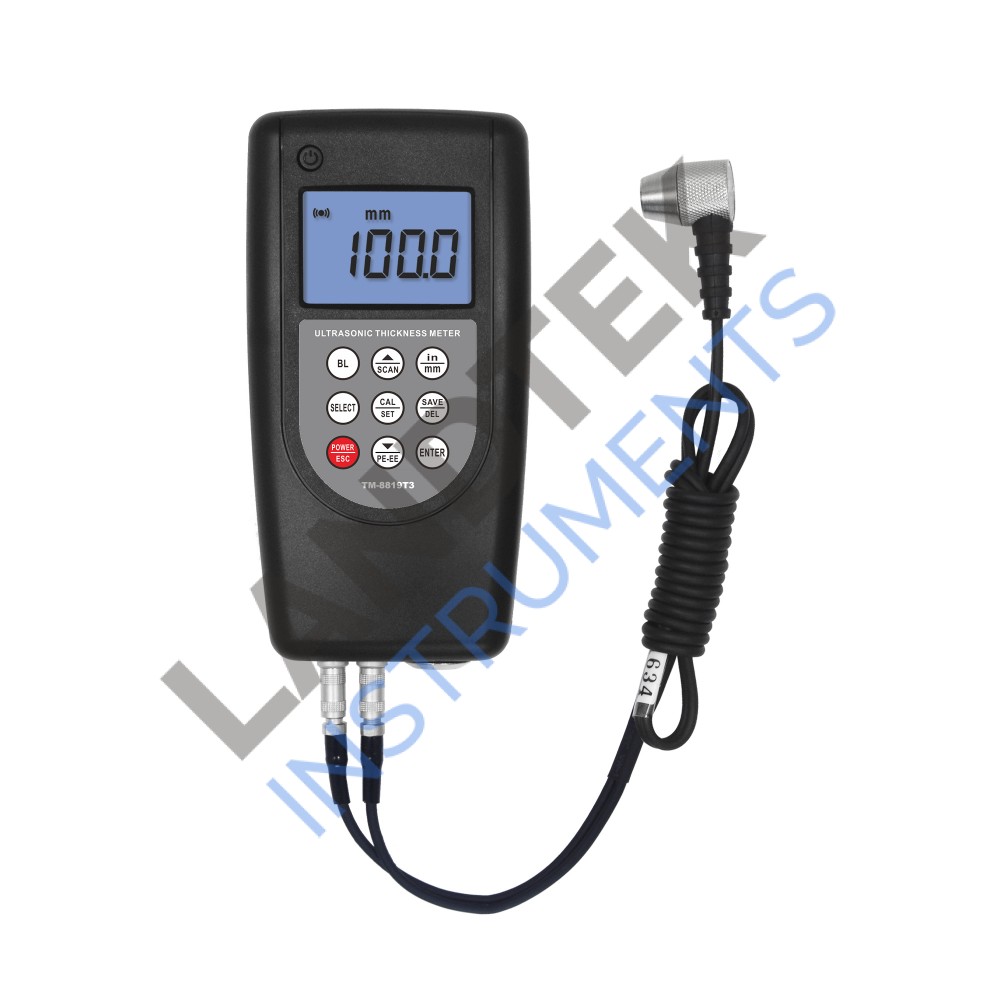

TM8819-T3 Landtek
TM8819-T3 Landtek
TM8819-T3 Landtek

TM8819-T3 Landtek

Rs.60,000/-
Brand:
Product Code: Multi Mode Ultrasonic Thickness Gauge
Availability: In Stock
Viewed 3902 times

Product Description

Buy Now TM8819-T3 Landtek Ultrasonic Thickness Gauge Multi Mode At Best Price In Pakistan 2026　

Features

* Multi-mode: Pulse-Echo mode (used for flaw and pit detection) and Echo-Echo mode (used for measurements eliminating paint or coating thickness).
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

　Principle

The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the downand-back travel path, and then multiplied by the velocity of sound in the material.

　Specifications

Unit SystemMetric system or British system (optional)
DisplayLCD with backlight
RangePulse-Echo mode: (1.0~300)mm (in Steel)
Echo-Echo mode: (3~30)mm
Resolution0.1mm / 0.01mm / 0.001inch
Accuracy±(0.5%n + 0.05), depends on materials and conditions
Measurement Period4 times per second for single point mode and 10 times per second for scan mode
Sound Velocity1000~9999 m/s
Memory for up to 20 files(99 values for each file)of stored values
Working ModeThere are two working modes of thickness measurement: single mode and scan mode
Operating ConditionsTemperature:0~40ºC   Humidity:<85%RH
Power Supply4x1.5V AAA(UM-4)Battery
Dimensions142x72x34mm
Weight175g(Not Including Batteries)
Standard AccessoriesMain Unit
Standard Probe
Coupling Agent
Carrying Case(B04)
Operation Manual
Optional Accessories
Other Special-purpose Probe
RS-232C Data Cable with Software
Bluetooth Data Adapter with Software
